Buy SDSS WERKSTOFF NR. 1.4410 Cross, S32760 Super Duplex Steel Welded Buttweld Fittings, ASTM A182 SDSS S32760 Pipe Elbow, Super Duplex UNS S32750 Butt weld Reducer Manufacturer in India.
Jade Special Metals is a well-known stockist unit of Super Duplex S32750 Pipe Fittings / Super Duplex S32760 Pipe Fittings, which can be bought at very competitive price from us. Super Duplex S32750 Elbow Pipe Fittings is more resistant to general corrosion and pitting than conventional nickel chromium stainless steels. Annealing Super Duplex S32760 Tee Pipe Fittings requires heating to between the ranges of 1900-2100 Degree F (1038-1149 Degree C), before rapidly quenching. The higher nickel and molybdenum content in Super Duplex S32750 Cross Pipe Fittings allows it to demonstrate better overall corrosion resistant properties, especially with regard to pitting and crevice corrosion in chloride environments.
Table of Contents
- ASTM A815 Super Duplex Steel S32750/S32760 Pipe Fittings Specification
- ASTM A815 Super Duplex Steel S32750/S32760 Buttweld Fittings Equivalent Grades
- Grade 200 ASTM A815 Super Duplex Steel S32750/S32760 Butt weld Fittings Chemical Composition
- ASTM A815 Super Duplex Steel S32750/S32760 Pipe Fittings Mechanical Properties
- ASTM A815 Super Duplex Steel S32750/S32760 Pipe Fittings Types
- Other Types of ASTM A815 Super Duplex Steel S32750/S32760 Fittings in Stock
- ASTM A815 Super Duplex Steel S32750/S32760 Pipe Fittings Dimensions Standard
Super Duplex Steel 2507 Equal Tee, SDSS DIN 1.4410 Cross Fittings, Super Duplex Steel UNS S32760 Seamless Pipe Fittings, Super Duplex 2507 Welded Fittings, S32750 Super Duplex Steel Dish Cap, Super Duplex Stainless Steel S32760 End Cap Supplier in Mumbai, India.
Get a best quote for Super Duplex Steel S32750/S32760 Seamless Pipe Fittings from Leading Manufacturer, Buy Super Duplex Steel S32750/S32760 Butt weld Elbow at Best Price in India.
Super Duplex S32760 Reducer Pipe Fittings has good corrosion resistance to most chemicals, salts, and acids and molybdenum content helps resistance to marine environments. Compared to chromium-nickel austenitic steels, Super Duplex S32750 Bend Pipe Fittings offers higher creep, stress to rupture and tensile strength at elevated temperatures. Super Duplex S32760 Stub End Pipe Fittings are also both non-hardenable by heat treatment and can be readily formed and drawn. Super Duplex S32750 End Cap Pipe Fittings has the following characteristics: higher creep resistance, excellent formability, rupture and tensile strength at high temperatures, and corrosion and pitting resistance. Super Duplex S32760 Dish Cap Pipe Fittings is excellent in a range of atmospheric environments and many corrosive media - generally more resistant.
ASTM A815 Super Duplex Steel S32750/S32760 Pipe Fittings Specification
| Specifications | ASTM A815 / ASME SA815 |
|---|---|
| Pipe Fittings size | Seamless Super Duplex Steel Butt Weld Fittings: 1/2" - 10" Welded Super Duplex Steel Butt Weld Fittings: 1/2" - 48" |
| Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Pipe Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Pipe fittings Types | Seamless / ERW / Welded / Fabricated |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Pipe Fittings Elbow | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Pipe Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
| Pipe Fittings Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Specialized manufacturer of | 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees |
| Buttweld Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Pipe Fittings uses & application | |
| Material Test Certificates (MTC) for Super Duplex Stainless Steel S32750/S32760 Pipe Fittings as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
ASTM A815 Super Duplex Steel S32750/S32760 Pipe Fittings
| Seamless/ Welded 100% Radiography Tested | ||
| Products | Size | |
| ASTM A815 Super Duplex Steel S32750/S32760 Elbow – Long Radius | ASTM A815 Super Duplex Steel S32750/S32760 45° Elbow | Sizes 1/2″ – 48″ |
| ASTM A815 Super Duplex Steel S32750/S32760 Elbow – Short Radius | ASTM A815 Super Duplex Steel S32750/S32760 Cross | |
| ASTM A815 Super Duplex Steel S32750/S32760 3D Elbow | ASTM A815 Super Duplex Steel S32750/S32760 5D Elbow | |
| ASTM A815 Super Duplex Steel S32750/S32760 Stub Ends | ASTM A815 Super Duplex Steel S32750/S32760 Pipe Bend | |
| ASTM A815 Super Duplex Steel S32750/S32760 Fabricated Tee | ASTM A815 Super Duplex Steel S32750/S32760 End Cap | |
| ASTM A815 Super Duplex Steel S32750/S32760 Reducer | ASTM A815 Super Duplex Steel S32750/S32760 Tees | |
| ASTM A815 Super Duplex Steel S32750/S32760 Reducing Elbow | ASTM A815 Super Duplex Steel S32750/S32760 Pipe Nipple | |
| ASTM A815 Super Duplex Steel S32750/S32760 Reducing Cross | ASTM A815 Super Duplex Steel S32750/S32760 Eccentric Reducer | |
| ASTM A815 Super Duplex Steel S32750/S32760 Concentric Reducer | ASTM A815 Super Duplex Steel S32750/S32760 Welded Pipe Fittings | |
ASME SA 815 Super Duplex Steel S32750/S32760 Buttweld Fittings Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. |
| Super Duplex 2507 |
S32750 / S32760 |
1.4410 |
ASTM A815 Super Duplex Steel S32750/S32760 Pipe Fittings Chemical Composition
| S32750 / S32760 | C | N | P | Si | Mn | Mo | Ni | Cr | S | Other |
| 0.030 | 0.24/0.32 | 0.035 | 0.80 | 1.20 | 3.0/5.0 | 6.00/8.00 | 24.0/26.0 | 0.020 | Cu:0.50 |
ASME SA 815 Super Duplex Steel S32750/S32760 Pipe Fittings Mechanical Properties
| S32750 / S32760 | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
ASTM A815 Super Duplex Steel S32750/S32760 Pipe Fittings Types

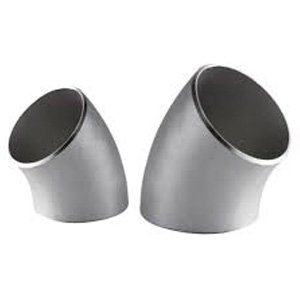

ASTM A815 Super Duplex Steel S32750/S32760 45° Elbow

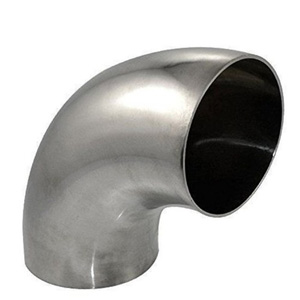

ASTM A815 Super Duplex Steel S32750/S32760 90° Elbow

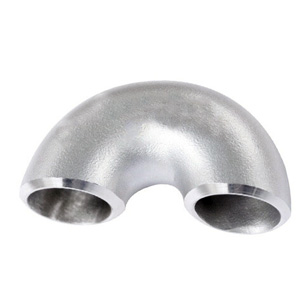

ASTM A815 Super Duplex Steel S32750/S32760 180° Elbow
ASTM A815 Super Duplex Steel S32750/S32760 Equal Tee

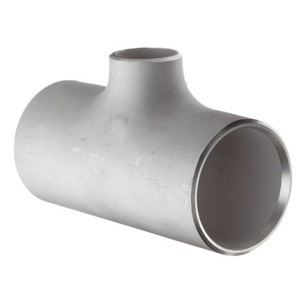

ASTM A815 Super Duplex Steel S32750/S32760 Reducing Tee

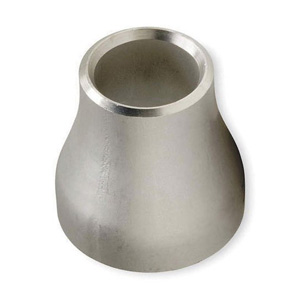

ASTM A815 Super Duplex Steel S32750/S32760 Concentric Reducer

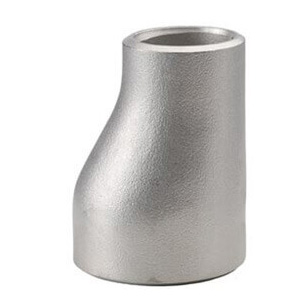

ASTM A815 Super Duplex Steel S32750/S32760 Eccentric Reducer

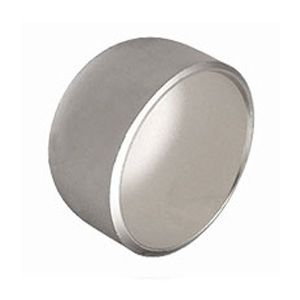

ASTM A815 Super Duplex Steel S32750/S32760 Pipe End Cap
ASTM A815 Super Duplex Steel S32750/S32760 Stub End

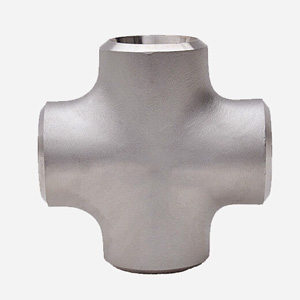

ASTM A815 Super Duplex Steel S32750/S32760 Cross

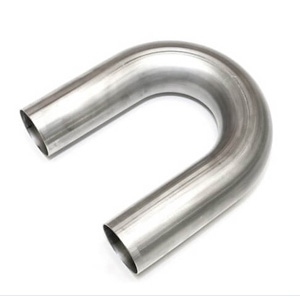

ASTM A815 Super Duplex Steel S32750/S32760 Pipe Bend

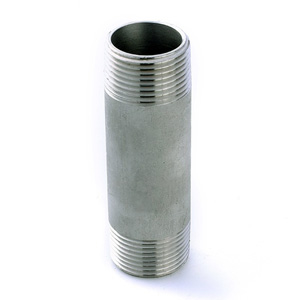

ASTM A815 Super Duplex Steel S32750/S32760 Pipe Nipples
ASTM A815 Super Duplex Steel S32750/S32760 Butt weld Pipe Fittings Manufacturing Standards
| Standard Code | Standard Name |
|---|---|
| American Steel Pipe Fittings Standard | |
| ANSI ASME SA-366 | Forged Durimet pipe fittings |
| ANSI ASME B16.9 | Factory-Made wrought steel pipe fittings |
| ANSI ASME B16.28 | Wrought steel butt-welding short radius elbows and returns |
| ISO 5251 | Nickel butt-welding fittings |
| MSS SP-43 | Wrought Nickel butt-welding fittings |
| MSS SP-75 | Forging butt-welding fittings |
| German Steel Pipe Fittings Standard | |
| DIN 2605 | Steel butt-welding pipe fittings.elbows and bends |
| DIN 2615 | Steel butt-welding pipe fittings.tees |
| DIN 2616 | Steel butt-welding pipe fittings.reducers |
| DIN 2617 | Steel butt-welding pipe fittings.caps |
| Japanese Steel Pipe Fittings Standard | |
| JIS B2311 | Universal steel butt-welding pipe fittings |
| JIS B2312 | Steel butt-welding pipe fittings |
| JIS B2313 | Steel plate butt-welding pipe fittings |
| Other Steel Pipe Fittings Standard | |
| EN 1025 | 3 Butt-welding pipe fittings |
Other Types of Super Duplex Steel S32750/S32760 Fittings in Stock
|
|
ASTM A815 Super Duplex Steel S32750/S32760 Pipe Fittings Dimensions Standard
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) |
Center to Face (Inches) |
Center to Face (Inches) |
Radius (Inches) |
Center to Center (Inches) |
Back to face (Inches) |
|
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | ASME B16.9 Pipe End Cap | ASME B16.9 Straight Tee | ASME B16.9 Straight Cross | ASME B16.9 Long And Short Stub Ends | |||
|---|---|---|---|---|---|---|---|---|
| (inch./ Inches) | (millimeter/ MM) | (Inches) | Length (Inches) |
Center to End (Inches) |
Center to End (Inches) |
Lap Diameter (Inches) |
Long Length (Inches) |
Short Length (Inches) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
