Nickel UNS N02200 Butt weld Reducer, 200 Nickel Alloy Buttweld Pipe Fittings, Nickel UNS N02200 Reducing Tee, ASTM B366 Ni-200 Pipe Elbow Manufacturer in India.
Jade Special Metals is a well-known manufacturing and exporting unit of Nickel Alloy 200 Butt Weld Pipe Fittings, which can also be offered customized sizes and shapes to our clients. Nickel Alloy 200 Elbow Pipe Fittings is molybdenum-alloyed steel and is the second most common austenite stainless steel. The molybdenum gives Nickel Alloy 200 Tee Pipe Fittings better overall corrosion resistant properties, particularly higher resistance to pitting and crevice corrosion in chloride environments. These Nickel Alloy 200 Cross Pipe Fittings is a group of austenitic stainless steels with superior corrosion resistance. The higher nickel and molybdenum content in Nickel Alloy 200 Reducer Pipe Fittings allows it to demonstrate better overall corrosion resistant properties, especially with regard to pitting and crevice corrosion in chloride environments.
Table of Contents
- ASTM B366 Nickel Alloy 200 Pipe Fittings Specification
- ASTM B366 Nickel 200 Buttweld Fittings Equivalent Grades
- Grade 200 ASTM B366 Nickel Alloy 200 Butt weld Fittings Chemical Composition
- ASTM B366 Nickel Alloy 200 Pipe Fittings Mechanical Properties
- ASTM B366 Nickel Alloy 200 Pipe Fittings Types
- Other Types of ASTM B366 Nickel Alloy 200 Fittings in Stock
- ASTM B366 Nickel Alloy 200 Pipe Fittings Dimensions Standard
Nickel Alloy 200 Buttweld Pipe Bend, Nickel DIN 2.4066 Cross Equal Tee, Alloy 200 Equal Tee, Nickel 200 45 Deg/90 Degree/180 Deg Elbow
Get a best quote for Nickel Alloy 200 Seamless Pipe Fittings from Leading Manufacturer, Buy Nickel Alloy 200 Butt weld Elbow at Best Price in India.
The resultant composition gives these Nickel Alloy 200 Stub End Pipe Fittings much improved corrosion resistance in many aggressive environments. The austenitic structure of Nickel Alloy 200 End Cap Pipe Fittings allows excellent toughness, even down to cryogenic temperatures. Nickel Alloy 200 Dish Cap Pipe Fittings also offer higher creep, stress-to-rupture and tensile strength at elevated temperatures, excellent corrosion resistance and strength properties, and they are well suited for fabricated or formed applications. Nickel UNS N02200 Pipe Fittings has fabrication characteristics, and so can be bought at very competitive price from us. The lower rate of general corrosion in mildly corrosive environments gives Nickel WNR 2.4060 Pipe Fittings good atmospheric corrosion resistance in polluted marine atmospheres.
ASTM B366 Nickel Alloy 200 Pipe Fittings Specification
| Specifications | ASTM B366 / ASME SB366 |
|---|---|
| Pipe Fittings size | Seamless Nickel Alloy Butt Weld Fittings : 1/2" - 10" Welded Nickel Alloy Butt Weld Fittings : 1/2" - 48" |
| Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Pipe Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Pipe fittings Types | Seamless / ERW / Welded / Fabricated |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Pipe Fittings Elbow | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Pipe Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
| Pipe Fittings Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Specialized manufacturer of | 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees |
| Buttweld Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Pipe Fittings uses & application | |
| Material Test Certificates (MTC) for Nickel Alloy 200 Pipe Fittings as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
ASTM B366 Nickel Alloy 200 Pipe Fittings
| Seamless/ Welded 100% Radiography Tested | ||
| Products | Size | |
| ASTM B366 Nickel Alloy 200 Elbow – Long Radius | ASTM B366 Nickel Alloy 200 45° Elbow | Sizes 1/2″ – 48″ |
| ASTM B366 Nickel Alloy 200 Elbow – Short Radius | ASTM B366 Nickel Alloy 200 Cross | |
| ASTM B366 Nickel Alloy 200 3D Elbow | ASTM B366 Nickel Alloy 200 5D Elbow | |
| ASTM B366 Nickel Alloy 200 Stub Ends | ASTM B366 Nickel Alloy 200 Pipe Bend | |
| ASTM B366 Nickel Alloy 200 Fabricated Tee | ASTM B366 Nickel Alloy 200 End Cap | |
| ASTM B366 Nickel Alloy 200 Reducer | ASTM B366 Nickel Alloy 200 Tees | |
| ASTM B366 Nickel Alloy 200 Reducing Elbow | ASTM B366 Nickel Alloy 200 Pipe Nipple | |
| ASTM B366 Nickel Alloy 200 Reducing Cross | ASTM B366 Nickel Alloy 200 Eccentric Reducer | |
| ASTM B366 Nickel Alloy 200 Concentric Reducer | ASTM B366 Nickel Alloy 200 Welded Pipe Fittings | |
ASME SB 366 Nickel Alloy 200 Buttweld Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | AFNOR | GOST | EN |
| Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | N-100M | НП-2 | Ni 99.2 |
ASTM B366 Nickel Alloy 200 Pipe Fittings Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
ASME SB 366 Nickel 200 Pipe Fittings Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
ASTM B366 Nickel Alloy 200 Pipe Fittings Types

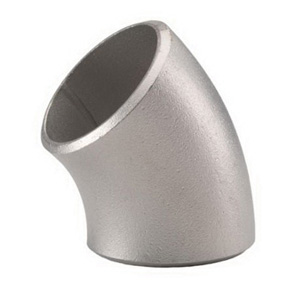

ASTM B366 Nickel Alloy 200 45° Elbow
ASTM B366 Nickel Alloy 200 90° Elbow
ASTM B366 Nickel Alloy 200 180° Elbow

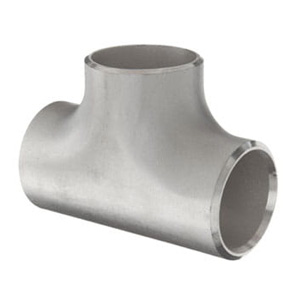

ASTM B366 Nickel Alloy 200 Equal Tee

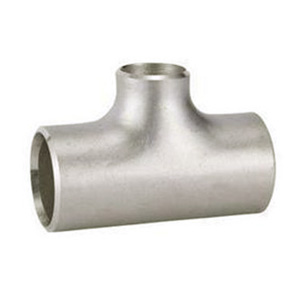

ASTM B366 Nickel Alloy 200 Reducing Tee

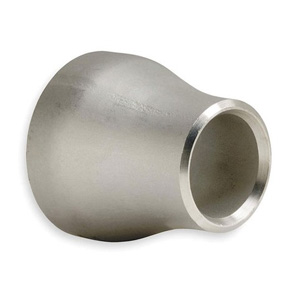

ASTM B366 Nickel Alloy 200 Concentric Reducer

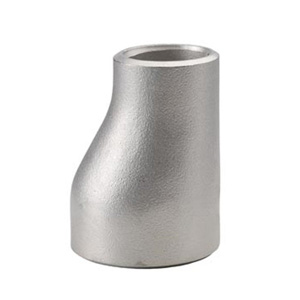

ASTM B366 Nickel Alloy 200 Eccentric Reducer
ASTM B366 Nickel Alloy 200 Pipe End Cap

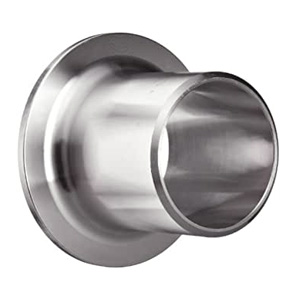

ASTM B366 Nickel Alloy 200 Stub End

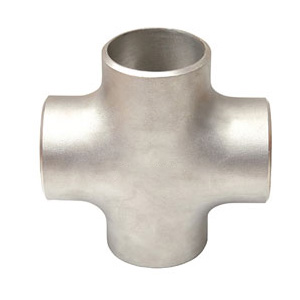

ASTM B366 Nickel Alloy 200 Cross

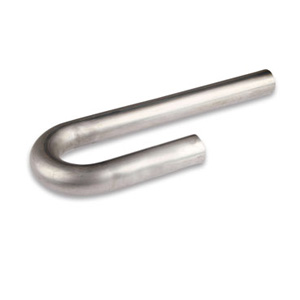

ASTM B366 Nickel Alloy 200 Pipe Bend

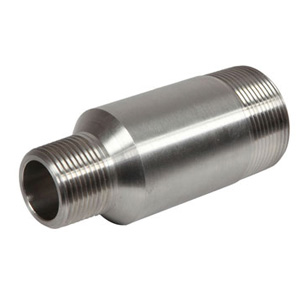

ASTM B366 Nickel Alloy 200 Pipe Nipples
ASTM B366 Nickel Alloy 200 Butt weld Pipe Fittings Manufacturing Standards
| Standard Code | Standard Name |
|---|---|
| American Steel Pipe Fittings Standard | |
| ANSI ASME SA-366 | Forged Durimet pipe fittings |
| ANSI ASME B16.9 | Factory-Made wrought steel pipe fittings |
| ANSI ASME B16.28 | Wrought steel butt-welding short radius elbows and returns |
| ISO 5251 | Nickel butt-welding fittings |
| MSS SP-43 | Wrought Nickel butt-welding fittings |
| MSS SP-75 | Forging butt-welding fittings |
| German Steel Pipe Fittings Standard | |
| DIN 2605 | Steel butt-welding pipe fittings.elbows and bends |
| DIN 2615 | Steel butt-welding pipe fittings.tees |
| DIN 2616 | Steel butt-welding pipe fittings.reducers |
| DIN 2617 | Steel butt-welding pipe fittings.caps |
| Japanese Steel Pipe Fittings Standard | |
| JIS B2311 | Universal steel butt-welding pipe fittings |
| JIS B2312 | Steel butt-welding pipe fittings |
| JIS B2313 | Steel plate butt-welding pipe fittings |
| Other Steel Pipe Fittings Standard | |
| EN 1025 | 3 Butt-welding pipe fittings |
Other Types of Nickel Alloy 200 Fittings in Stock
|
|
ASTM B366 Nickel Alloy 200 Pipe Fittings Dimensions Standard
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) |
Center to Face (Inches) |
Center to Face (Inches) |
Radius (Inches) |
Center to Center (Inches) |
Back to face (Inches) |
|
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | ASME B16.9 Pipe End Cap | ASME B16.9 Straight Tee | ASME B16.9 Straight Cross | ASME B16.9 Long And Short Stub Ends | |||
|---|---|---|---|---|---|---|---|---|
| (inch./ Inches) | (millimeter/ MM) | (Inches) | Length (Inches) |
Center to End (Inches) |
Center to End (Inches) |
Lap Diameter (Inches) |
Long Length (Inches) |
Short Length (Inches) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Pressure Rating Class of ASTM B366 Nickel 200 Pipe Fittings
| Pressure-Temperature ratings for Nickel 200 Pipe Fittings (psig) | |||||
|---|---|---|---|---|---|
| Temperature Ratings | Pressure Class | ||||
| 150 | 300 | ||||
| 1/4 - 1 inch. | 1 1/4 - 2 inch. | 2 1/2 - 3 inch. | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | - | 935 | 750 | 560 |
| 450 | 232 | - | 725 | 600 | 475 |
| 500 | 260 | - | 510 | 450 | 385 |
| 550 | 288 | - | 300 | 300 | 300 |
