Carbon Steel A36/S275JR Hot Rolled Plate, Mild Steel ASTM A36 Sheet, EN10025 S275JR Carbon Steel HR Plate Suppliers, S275JR High Tensile Structural Steel Plate, A36 Carbon Steel Structural Plate Manufacturer in India.
Jade Special Metals is one of the finest recognized manufacturers of CS A36 / S275 JR Sheets / Plates, which are used for arresting the punch by means of a hammer to splay the tail, sewing, or plying through special stud pliers. Carbon Steel A36 JR Sheets is a slender plate (usually disk-formed) by means of having a hole (normally in the middle) that is in general used to dole out the stack of a threaded fastener, such as a nut or screw. Other uses of Carbon Steel S275 JR Plates are as a spring (belleville washer, wave washer), spacer, wear pad, locking device, preload representative tool, and to trim down vibration (rubber washer).
Table of Contents
- Carbon Steel A36 / S275JR Sheets & Plates Specification
- ASTM B709 Carbon Steel A36 / S275JR Sheets & Plates Equivalent Grades
- CS S275JR Sheets & Plates Chemical Composition
- ASTM A36 Carbon Steel S275JR Sheets & Plates Mechanical Properties
- Carbon Steel A36 / S275JR Sheets & Plates Types
- Other Types of Carbon Steel A36 / S275JR Sheets & Plates in Stock
- Carbon Steel A36 / S275JR Sheets & Plates Thickness Chart
- ASTM A36 CS S275JR Sheets & Plates Weight Per Square Meter
Carbon Steel S275JR Plate, Hot Rolled Structural Steel Plate S275JR, S275JR Steel Sheets, Carbon Steel A36 Sheet, A36/S275JR Carbon Steel Structural Plate Supplier in Mumbai, India.
Get a best quote for ANSI B16.11 Carbon Steel A36 / S275JR Sheets & Plates from Leading Manufacturer, Buy CS A36 / S275JR Sheets & Plates at Best Price in India.
Carbon Steel A36 JR Coils generally have an outer diameter (OD) in relation to two times of the width of its inner diameter (ID). Carbon Steel S275 JR Slatting Sheets, which is as well recognized as press stud, snap, tich or popper, is a brace of interconnecting discs. These Carbon Steel A36 JR Slatting Plates are being made out of a metal or plastic, which is usually used in preference to buttons to button up clothing and for parallel functions. Meanwhile, Carbon Steel S275 JR Slatting Coils can be joined to leather or fabric by spellbinding in the company of a die and punch set detailed to the kind of rivet snaps.
Carbon Steel A36 / S275JR Sheets, Plates & Coils Specification
| Specifications | ASTM A36, IS 2062 Gr A, IS 2062 GRADE B, SS400, S235JR, S275JR, EN 10025 |
|---|---|
| Dimension | AISI, ASTM, BS, DIN, GB, JIS |
| Width | 1000mm – 3000mm |
| Thickness | 5mm - 150mm |
| Length | 3000mm -18000mm |
ASTM A36 / S275JR Carbon Steel Sheets & Plates Equivalent Grades
| EU EN | DIN,WNr | JIS | AFNOR | BS | Steel No. | GOST | ISO | IS |
| S275JR | RSt42-2 St 44-2 |
SS400 | E28-2 | 161-430 43A 43B |
1.0044 | St4ps St4sp |
E275B | IS2062 |
ASTM A36 / S275JR Carbon Steel Sheets & Plates Chemical Composition
| Grade | C (t≤16mm) | Si | Mn | P | S | Cu | N |
| A36 | 0.26 max | 0.40 max | - | 0.04 max | 0.05 max | 0.20 min | - |
| S275JR | 0.24 max | - | 1.60 max | 0.045 max | 0.045 max | 0.60 max | 0.014 max |
Mild Steel ASTM A36 / S275JR Sheets & Plates Mechanical Properties
| Grade | Yield strength ReH/(N/mm2) (t≤16mm) min | Tensile strength Rm/(N/mm2) (3mm≤t≤16mm) | Elongation A/% (3mm≤t≤40mm) min | Charpy V test | |
| Temperature/℃ | Impact energy (Longitudinal)/J min | ||||
| A36 | 250 | 400-550 | 23 | - | - |
| S275JR | 275 | 410-560 | 23 | 20 | 27 |
Carbon Steel A36 / S275JR Sheets & Plates Types
Carbon Steel A36 / S275JR Sheets
Carbon Steel A36 / S275JR Plate

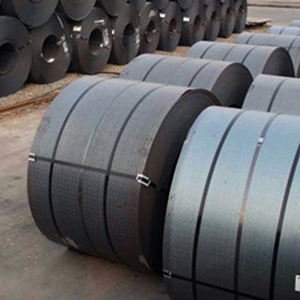

Carbon Steel A36 / S275JR Slatting Coils

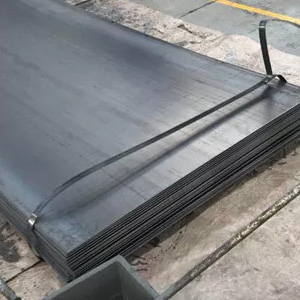

Carbon Steel A36 / S275JR Slatting Sheets
Other Types of Carbon Steel A36 / S275JR Sheets & Plates in Stock
|
|
Carbon Steel A36 / S275JR Sheets & Plates Thickness Chart
| Thickness | Thickness | Size Range | Surface Area per Unit weight | Approx Weight per Sheet | ||
|---|---|---|---|---|---|---|
| inches | mm | lbs/ft² | kg/m² | lbs | kg | |
| 0.015 | 0.381 | 36 x 96 | 0.630 | 3.07566 | 15.12 | 6.84936 |
| 0.015 | 0.381 | 36 x 120 | 0.630 | 3.07566 | 18.90 | 8.5617 |
| 0.0178 | 0.45212 | 36 x 96 | 0.756 | 3.690792 | 18.15 | 8.22195 |
| 0.0178 | 0.45212 | 36 x 120 | 0.756 | 3.690792 | 22.68 | 10.27404 |
| 0.0178 | 0.45212 | 48 x 96 | 0.756 | 3.690792 | 24.19 | 10.95807 |
| 0.0178 | 0.45212 | 48 x 120 | 0.756 | 3.690792 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 30 x 96 | 1.008 | 4.921056 | 20.16 | 9.13248 |
| 0.0235 | 0.5969 | 30 x 120 | 1.008 | 4.921056 | 25.20 | 11.4156 |
| 0.0235 | 0.5969 | 36 x 96 | 1.008 | 4.921056 | 24.19 | 10.95807 |
| 0.0235 | 0.5969 | 36 x 120 | 1.008 | 4.921056 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 36 x 144 | 1.008 | 4.921056 | 36.29 | 16.43937 |
| 0.0235 | 0.5969 | 48 x 96 | 1.008 | 4.921056 | 32.26 | 14.61378 |
| 0.0235 | 0.5969 | 48 x 120 | 1.008 | 4.921056 | 40.32 | 18.26496 |
| 0.0235 | 0.5969 | 48 x 144 | 1.008 | 4.921056 | 48.39 | 21.92067 |
| 0.0291 | 0.73914 | 30 x 96 | 1.260 | 6.15132 | 25.20 | 11.4156 |
| 0.0291 | 0.73914 | 30 x 120 | 1.260 | 6.15132 | 31.50 | 14.2695 |
| 0.0291 | 0.73914 | 36 x 96 | 1.260 | 6.15132 | 30.24 | 13.69872 |
| 0.0291 | 0.73914 | 36 x 120 | 1.260 | 6.15132 | 37.80 | 17.1234 |
| 0.0291 | 0.73914 | 36 x 144 | 1.260 | 6.15132 | 45.37 | 20.55261 |
| 0.0291 | 0.73914 | 48 x 96 | 1.260 | 6.15132 | 40.32 | 18.26496 |
| 0.0291 | 0.73914 | 48 x 120 | 1.260 | 6.15132 | 50.41 | 22.83573 |
| 0.0291 | 0.73914 | 48 x 144 | 1.260 | 6.15132 | 60.49 | 27.40197 |
| 0.0355 | 0.9017 | 30 x 96 | 1.512 | 7.381584 | 30.24 | 13.69872 |
| 0.0355 | 0.9017 | 30 x 120 | 1.512 | 7.381584 | 37.80 | 17.1234 |
| 0.0355 | 0.9017 | 36 x 96 | 1.512 | 7.381584 | 36.29 | 16.43937 |
ASTM A36 Carbon Steel S275JR Sheets & Plates Weight Per Square Meter
| Size (mm) | Weight per Sheet (Kg) |
Size (mm) | Weight per Sheet (Kg) |
|---|---|---|---|
| 2000 x1000 x 0.7 | 11.5 | 2500 x 1250 x 1.5 | 38.4 |
| 2500 x1250 x 0.7 | 17.9 | 3000 x 1500 x 1.5 | 55.3 |
| 2000 x1000 x 0.9 | 14.7 | 2000 x 1000 x 2.0 | 32.7 |
| 2500 x1250 x 0.9 | 23.0 | 2500 x 1250 x 2.0 | 51.2 |
| 2000 x1000 x 1.0 | 16.4 | 3000 x 1500 x 2.0 | 73.7 |
| 2500 x1250 x 1.0 | 25.6 | 2000 x 1000 x 2.5 | 40.9 |
| 3000 x1500 x 1.0 | 36.8 | 2500 x 1250 x 2.5 | 63.9 |
| 2000 x1000 x 1.2 | 19.6 | 3000 x 1500 x 2.5 | 92.1 |
| 2500 x1250 x 1.2 | 30.7 | 2000 x 1000 x 3.0 | 49.6 |
| 3000 x1500 x 1.2 | 44.2 | 2500 x 1250 x 3.0 | 77.5 |
| 2000 x1000 x 1.5 | 24.6 | 3000 x 1500 x 3.0 | 112.0 |
