Titanium DIN 3.7035 Olets Fittings, Grade 2 Titanium Socket weld Outlet, Titanium Alloy Gr. 2 Branch Connection, ASTM B363 Titanium Gr. 2 Latrolets Manufacturer in India.
Jade Special Metals is a popular trader and distributor of Titanium Alloy Gr 2 Outlets, which is extremely good resistance to scaling for up to 800 Deg Celsius in an oxidizing atmosphere. Titanium Gr 2 Welding Outlets is used in machine, medical instruments, petrochemical, Air Bag parts, Oil Field Products, Defense, Forgers, Aerospace, Heavy and Light Equipment, etc. Titanium Gr 2 Threading Outlets is also used in Post Tensioning Fasteners, Industrial Machinery, Bolts, Heavy and Medium Duty Electric Motors, Bearings, and more. Titanium Gr 2 Socket Weld Outlets is as well used in Power Transmissions, Suspension Components, Turbine Blades, Automotive Components and Fasteners, Hand Tools, Marine Outboard Engines, etc. Titanium Gr 2 Flexible Outlets are heat resistant ferritic steel in the company of low hot strength values to a certain extent.
Table of Contents
- Titanium Alloy Gr. 2 Olets Fittings Specification
- ASTM B363 Gr. 2 Titanium Alloy Olets Fittings Equivalent Grades
- Grade 2 Ti. Alloy Olets Fittings Chemical Composition
- ASME SB363 Titanium Alloy Gr. 2 Olets Fittings Mechanical Properties
- Titanium Gr. 2 Olets Fittings Types
- Other Types of Grade 2 Titanium Olets Fittings in Stock
- ASTM B363 Titanium Gr. 2 Olets Fittings Dimensions
Titanium UNS R50400 Nipple Outlet Fittings, ASME SB363 Titanium Gr. 2 Welding Outlet, Ti Gr. 2 Coupolet, Grade 2 Titanium Lateral Outlets, High Quality Titanium Gr 2 Threadolets Supplier in Mumbai, India.
Get a best quote for ANSI B16.11 Titanium Alloy Gr. 2 Olets Fittings from Leading Manufacturer, Buy Ti. Gr. 2 Olets Fittings at Best Price in India.
And for this reason, Titanium Gr 2 Nipple Outlets is suggested merely for modest loads. Only restricted resistance to nitrogen enclosing and oxygen denuded gasses is to be expected for Titanium Gr 2 Sweepolet. Hot forging is not easy in Titanium Gr 2 Coupolet, where low or medium temperatures even up to 600 Deg Celsius is suggested. Good weldability is possible for Titanium Gr 2 Brazolet, but merely by means of the electric arc method. Its ferritic character provides Titanium Gr 2 Insert weldolet with excellent resistance in sulphurous atmospheres. Titanium Gr 2 Threadolet is used to build supporting components for the parts of conveyors and for furnace suspensions.
Titanium Alloy Gr. 2 Olets Fittings Specification
| Outlet Fittings Standard | ASTM B363 / ASME SB363 |
|---|---|
| Outlet Fittings Dimensions | ASME / ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, BS 3799 etc |
| Outlet Fittings Size | 1/8″-4″ (DN6-DN100) |
| Outlet Fittings Connect Type | Welded, threaded, BW, SW |
| Outlet Pipe Diameter | DN15 ~ DN40 |
| Outlet Fittings Pressure Rating | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Outlet Process | Free forging, plate cutting, forged |
| Origin of Outlet | Indian Origin, European Origin, Japanese Origin |
| Outlet Fittings Packing | Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests |
| Test Certificates | Mill Test Certificates Titanium Gr. 2 Outlet Fittings Chemical Reports EN 10204 3.1 Mechanical Reports, Destructive Test Report Non Destructive Test Reports Titanium Gr. 2 Outlet Fittings PMI Test Reports Titanium Gr. 2 Outlet Fittings Visual Inspection Reports NABL Approved Lab Reports |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2 Test Certificates certifying NACE MR0103, NACE MR0175 | |
ASTM B363 Gr. 2 Titanium Alloy Olets Fittings
| Products | Size | |
| ASTM B363 Titanium Alloy Gr. 2 Weldolet | ASTM B363 Titanium Alloy Gr. 2 Sockolet | Sizes: 1/8″-4″ (DN6-DN100) |
| ASTM B363 Titanium Alloy Gr. 2 Elbolet | ASTM B363 Titanium Alloy Gr. 2 Threadolet | |
| ASTM B363 Titanium Alloy Gr. 2 Latrolets | ASTM B363 Titanium Alloy Gr. 2 Nippolet | |
| ASTM B363 Titanium Alloy Gr. 2 Sweepolet | ASTM B363 Titanium Alloy Gr. 2 Brazolet | |
| ASTM B363 Titanium Alloy Gr. 2 Flexolet | ASTM B363 Titanium Alloy Gr. 2 Branch Outlets | |
| ASTM B363 Titanium Alloy Gr. 2 Threading Outlet | ASTM B363 Titanium Alloy Gr. 2 Socket Weld Outlet | |
ASTM B363 Gr. 2 Titanium Alloy Olets Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
Grade 2 Titanium Olets Fittings Chemical Composition
| Element | Ti | C | Fe | H | N | O |
| Titanium Gr 2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max |
ASTM B363 Titanium Alloy Gr. 2 Olets Fittings Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Ti. Gr 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
Titanium Gr. 2 Olets Fittings Types

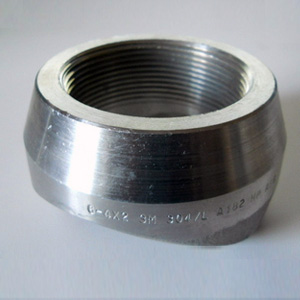

Titanium Alloy Gr. 2 Threadolet

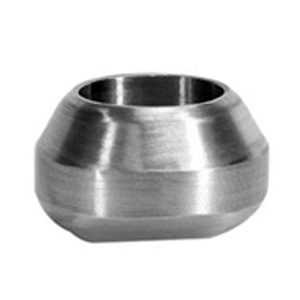

Titanium Alloy Gr. 2 Weldolet

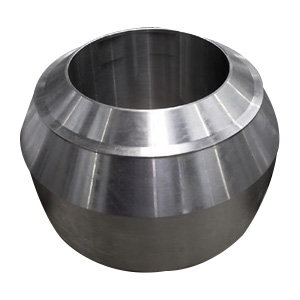

Titanium Alloy Gr. 2 Sockolet

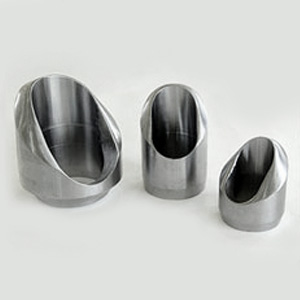

Titanium Alloy Gr. 2 Elbolet

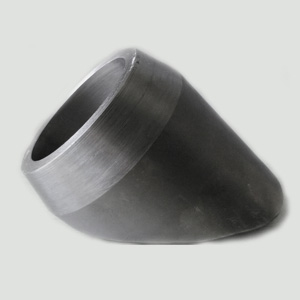

Titanium Alloy Gr. 2 Latrolets
Titanium Alloy Gr. 2 Nippolet

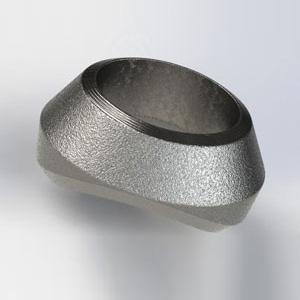

Titanium Alloy Gr. 2 Flexolet

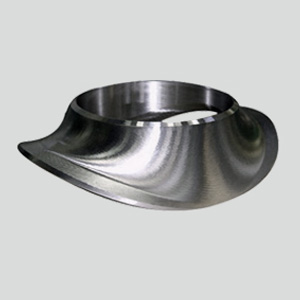

Titanium Alloy Gr. 2 Sweepolet

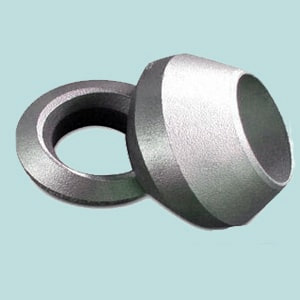

Titanium Alloy Gr. 2 Brazolet

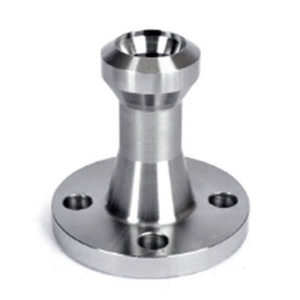

Titanium Alloy Gr. 2 Flangeolet

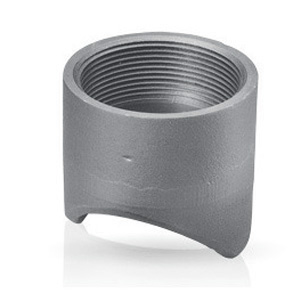

Titanium Alloy Gr. 2 Coupolet
Other Types of Grade 2 Titanium Olets Fittings in Stock
|
|
Titanium Alloy Gr. 2 Olet Fittings Dimension
| Sockolet Dimensions | ||||||
|---|---|---|---|---|---|---|
| Outlet Size (NPT) | A | B | C | D | E | Approx. Weight (lb) |
| 1/2 | 1 | 1 3/8 | 15/16 | 0.622 | 17/32 | 0.15 |
| 3/4 | 1 1/16 | 1 5/8 | 1 3/16 | 0.824 | 15/32 | 0.25 |
| 1 | 1 5/16 | 2 | 1 7/16 | 1.049 | 23/32 | 0.45 |
| 1 1/4 | 1 5/16 | 2 3/8 | 1 3/4 | 1.380 | 9/16 0.65 | |
| 1 1/2 | 1 3/8 | 2 7/8 | 2 | 1.610 | 21/32 | 0.85 |
| 2 | 1 1/2 | 3 1/2 | 2 9/16 | 2.067 | 15/16 | 1.40 |
| 2 1/2 | 1 9/16 | 4 1/16 | 3 | 2.469 | 3/4 | 2.25 |
| 3 | 1 3/4 | 4 13/16 | 3 11/16 | 3.068 | 15/16 | 3.75 |
| 3 1/2 | 1 11/16 | 5 3/8 | 4 7/16 | 3.548 | 11/16 | 4.30 |
| 4 | 1 7/8 | 6 1/16 | 4 3/4 | 4.026 | 1 1/16 | 6.60 |
| 5 | 2 7/16 | 7 1/4 | 5 1/4 | 5.047 | 1 | 9.00 |
| 6 | 2 11/16 | 8 11/16 | 6 1/16 | 6.065 | 1 3/16 | 15.50 |
| ELBOLET DIMENSIONS | |||||
| Nominal Size of Elbow (NPS) | Outlet Size (NPS) | CL 3000 Threaded and Socket WeldSch. Standard and XS Buttweld | CL 6000 Threaded and Socket Weld Sch. 160 and XXS Buttweld | ||
|---|---|---|---|---|---|
| C | E | C | E | ||
| 36 – 3/4 | 1/4 | 1 1/2 | 1 19/32 | 1 1/2 | 1 19/32 |
| 36 – 3/4 | 3/8 | 1 1/2 | 1 19/32 | 1 1/2 | 1 19/32 |
| 36 – 3/4 | 1/2 | 1 1/2 | 1 19/32 | 1 23/32 | 1 7/8 |
| 36 – 1 | 3/4 | 1 23/32 | 1 7/8 | 2 1/4 | 2 1/4 |
| 36 – 2 | 1 | 2 1/4 | 2 1/4 | 2 7/8 | 2 1/2 |
| 36 – 2 | 1 1/4 | 2 7/8 | 2 1/2 | 3 1/8 | 2 11/16 |
| 36 – 2 | 1 1/2 | 3 1/8 | 2 11/16 | 4 3/16 | 3 1/4 |
| 36 – 3 | 2 | 4 3/16 | 3 1/4 | – | – |
| Order to Specific Elbow Sizes |
|||||
| *2 1/2 | 4 3/16 | 3 1/4 | bw only | bw only | |
| *3 | 5 1/16 | 3 7/8 | bw only | bw only | |
| *4 | 6 5/8 | 4 13/16 | bw only | bw only | |
| *6 | 9 3/8 | 6 1/2 | bw only | bw only | |
| *8 | 13 5/16 | 8 1/16 | bw only | bw only | |
| *10 | 17 1/32 | 10 3/8 | bw only | bw only | |
| *12 | 19 5/8 | 11 1/8 | bw only | bw only | |
Titanium Alloy Gr. 2 Olet Fittings Standard
| Standard | Description |
| ASTM B363 | Standard Specification for Titanium Alloy Gr. 2Outlet Fittings |
| ANSI ASME B16.11 | Socket-welding and Threaded Outlet fittings |
| MSS SP 79 | Standard Specification for Titanium Alloy Gr. 2 Insert Welding Outlet |
| MSS SP-97 | SW,TH and BW ends for integrally reinforced forged branch outlet |
| JIS B2316 | socket-welding outlets pipe fittings |
