S32205 Duplex Steel Forged Socket weld 90mdeg. Elbow, Duplex 2205 Socket Weld Bushing, ASTM A182 Duplex S31803 Socket Weld Inserts, ASME SA182 Duplex Steel S32205 SW Pipe Nipple, DSS S31803 Socket Weld Fittings Manufacturer in India.
Jade Special Metals is an eminent manufacturer and trader of Duplex Steel S31803 Socket Weld Fittings / Duplex Steel S32205 Socket Weld Fittings / Duplex Steel F51 Socket Weld Fittings / Duplex Steel F52 Socket Weld Fittings, which are used more or less all over the place, from generators, reactors and engines to chemical refinery, oil refinery and as well during everyday products such as eyeglasses, musical instruments and doorknobs. We provide an extensive variety of quality these Duplex Steel S31803 Socket Weld Elbow Fittings in different sizes and shapes.
Table of Contents
- Duplex Steel S31803 / S32205 Socket Weld Fittings Specification
- ASTM A182 2205 Duplex Socket Weld Fittings Equivalent Grades
- Grade 2205 Duplex Steel Socket Weld Fittings Chemical Composition
- ASTM A182 Duplex Steel S31803 / S32205 Socket Weld Fittings Mechanical Properties
- Duplex Steel S31803 / S32205 Socket Weld Fittings Types
- Other Types of Duplex UNS S31803 / S32205 Socket Weld Fittings in Stock
- Thickness Chart of Duplex Steel S31803 / S32205 Socket Weld Fittings
- Duplex Steel S31803 / S32205 Socket Weld Forged Fittings Size Range & Dimensions
DSS UNS S31803 Socket Weld Bends, Duplex S31803 Socket weld Pipe 90 Deg Elbow, Duplex Stainless Steel S32205 Socketweld Bushing, DIN 1.4462 Socket Weld Fittings, Duplex Steel S32205 Socketweld Equal Cross Supplier in Mumbai, India.
Get a best quote for ANSI B16.11 Duplex Steel S31803 Socket Weld Fittings from Leading Manufacturer, Buy Duplex 2205 Socket Weld Elbow at Best Price in India.
These Duplex Steel S32205 Socket Weld Tee Fittings are touted as the most popular modern alloys and are usually used for their high resistances to corrosion, pressure, warping and heat. We manufacture and distribute a lot of the most popular Duplex Steel F51 Socket Weld Cross Fittings, which include pipes and tubing. We offer a complete Piping Solutions for Duplex Steel F52 Socket Weld Cap Fittings, as it has a few remarkably extensive ranges of manufacturing capabilities. Manufactured in accordance with different grades, Duplex Steel S31803 Socket Weld Coupling Fittings are widely used in quite a lot of industries such as Nuclear Power Sites, Power plants, Water System, Electric Power, Oil Field, Pipe Projects, Natural Gas, Shipbuilding, Offshore and so on. We focus our strength in making custom-based shape and special size of Duplex Steel S32205 Socket Weld Union Fittings for our esteemed clients.
Duplex Steel S31803 / S32205 Socket Weld Fittings Specification
| Specifications | ASTM A182/ ASME SA182 |
|---|---|
| Socket Weld Forged Fittings Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Socket Weld Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Socket Weld Fittings Types | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM A182 Socket Weld Forged Fittings Pressure Rating | Socket-weld End-3000/ 6000/ 9000lbs |
| Socket Weld Forged Fittings Thread | NPT, BSPT, BSPP |
| Socket Weld Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Socket Weld Forged Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| Specialized manufacturer of | Socket Weld 90º Elbows, Socket Weld 45º Elbows, Socket Weld Tees, Socket Weld Cross, Socket Weld Couplings, Socket Weld Reducers, Socket Weld Inserts, Socket Weld Caps, Socket Weld Nipples, and Socket Weld Unions, Forged Pipe Fittings, Socket Weld & Threaded, Socket Weld Equal Tees & Socket Weld Reducing Tees, Socket Weld Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
ASTM A182 Duplex S31803 / S32205 Socket Weld Fittings
| Products | Size | |
|---|---|---|
| ASTM A182 Duplex Steel S31803 / S32205 Socket Weld 90° Elbow | ASTM A182 Duplex Steel S31803 / S32205 Socket Weld 45° Elbow | Sizes 1/8″– 4″ Pressure Ratings – 2000 LBS, 3000 LBS, 8250 LBS, 9000 LBS |
| ASTM A182 Duplex Steel S31803 / S32205 Socket Weld Adapters | ASTM A182 Duplex Steel S31803 / S32205 Socket Weld Pipe Nipple | |
| ASTM A182 Duplex Steel S31803 / S32205 Socket Weld Socket weld Cap | ASTM A182 Duplex Steel S31803 / S32205 Socket Weld Coupling | |
| ASTM A182 Duplex Steel S31803 / S32205 Socket Weld Forged Tee | ASTM A182 Duplex Steel S31803 / S32205 Socket Weld Union | |
| ASTM A182 Duplex Steel S31803 / S32205 Socket Weld Cross | ASTM A182 Duplex Steel S31803 / S32205 Socket Weld Reducer Insert | |
| ASTM A182 Duplex Steel S31803 / S32205 Socket Weld Branch Outlet | ASTM A182 Duplex Steel S31803 / S32205 Socket Weld Street Elbow | |
| ASTM A182 Duplex Steel S31803 / S32205 Socket Weld Pipe Nipple | ASTM A182 Duplex Steel S31803 / S32205 Socket Weld Unequal Tee | |
ASTM A182 Duplex Steel 2205 Socket Weld Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
| Duplex 2205 | 1.4462 | S31803 / S32205 |
UNS S31803/S32205 Duplex Steel Socket Weld Fittings Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| Duplex S31803 | 0.030max | ;2.00 max | 1.00 max | 0.030max | 0.020 max | 22.0-23.0 | 3.0-3.5 | 4.50-6.50 | 0.14-0.20 | 63.72 min |
| Duplex S32205 | 0.030max | 2.00 max | 1.00 max | 0.030max | 0.020 max | 21.0-23.0 | 2.50-3.50 | 4.50-6.50 | 0.08-0.20 | 63.54 min |
ASTM A182 Duplex Steel S31803 / S32205 Socket Weld Fittings Mechanical Properties
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| 2205 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
Duplex Steel S31803 / S32205 Socket Weld Fittings Types

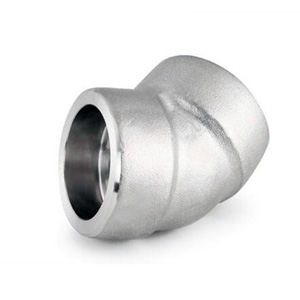

Duplex Steel S31803 / S32205 45° Socket Weld Elbow

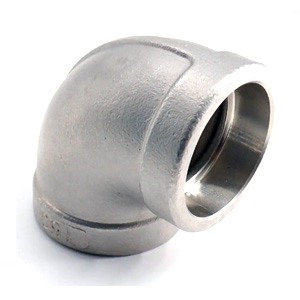

Duplex Steel S31803 / S32205 90° Socket Weld Elbow

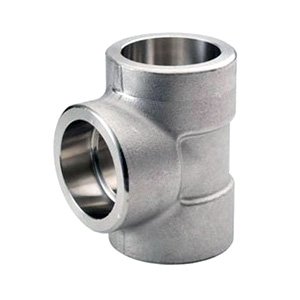

Duplex Steel S31803 / S32205 Socket Weld Tee

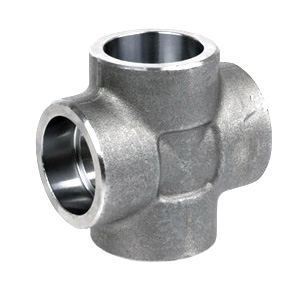

Duplex Steel S31803 / S32205 Socket Weld Cross

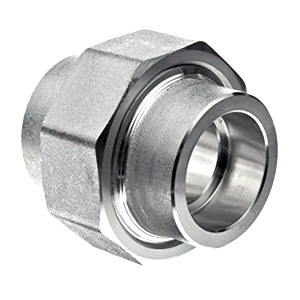

Duplex Steel S31803 / S32205 Socket Weld Union
Duplex Steel S31803 / S32205 Socket Weld Full Coupling

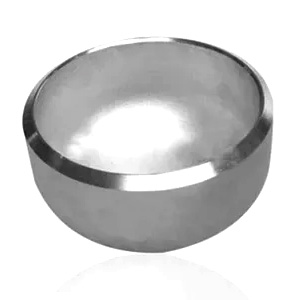

Duplex Steel S31803 / S32205 Socket Weld Pipe End Cap

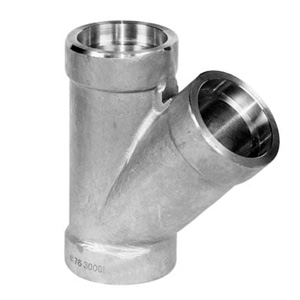

Duplex Steel S31803 / S32205 Socket Weld Lateral Tee

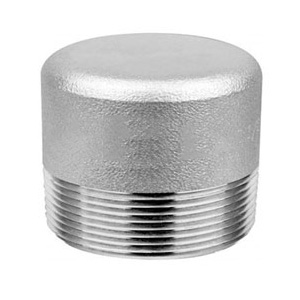

Duplex Steel S31803 / S32205 Socket Weld Round Plug

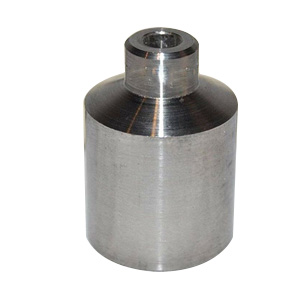

Duplex Steel S31803 / S32205 Socket Weld Adapter

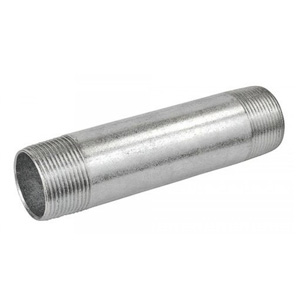

Duplex Steel S31803 / S32205 Socket Weld Nipples

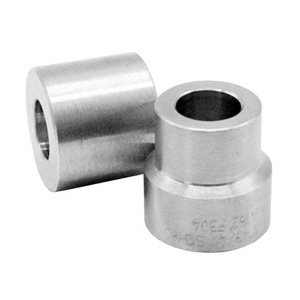

Duplex Steel S31803 / S32205 Socket Weld Reducer Inserts
Duplex Steel S31803 / S32205 Socket Weld Fittings Manufacturing Standards
| ASTM A182 / A182M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Duplex Steel Forged Fittings |
| BS21 | Threading. |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Duplex Steel fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Other Types of Duplex Steel S31803/S32205 Socket Weld Fittings in Stock
|
|
ASTM A182 Duplex Steel S31803 / S32205 Socket Weld Fittings Class, Size & Wall Thickness
| Description | Class Designation | ||
|---|---|---|---|
| 3000 | 6000 | 9000 | |
| Elbows 45 and 90 degrees, Tees, Crosses, Couplings, Half-Couplings, End or Pipe Caps |
1/2 – 4 | 1/2 – 2 | 1/2 – 2 |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| Pipe Size by Wall Thickness |
SCH 80 / XS | SCH 160 | XXS |
SS ASTM A182 Duplex Steel S31803 / S32205 Socket Weld Forged Fittings Size Range & Dimensions
| DN-NPT | MAJOR DIAMETER MM | TAPPING /DRILL SIZE MM | TPI | PITCH MM |
|---|---|---|---|---|
| 1/16″ | 7.895 | 6.00 | 27 | 0.941 |
| 1/8″ | 10.242 | 8.25 | 27 | 0.941 |
| 1/4″ | 13.616 | 10.70 | 18 | 1.411 |
| 3/8″ | 17.055 | 14.10 | 18 | 1.411 |
| 1/2″ | 21.223 | 17.40 | 14 | 1.814 |
| 3/4″ | 26.568 | 22.60 | 14 | 1.814 |
| 1″ | 33.228 | 28.50 | 11.5 | 2.209 |
| 1¼” | 41.985 | 37.00 | 11.5 | 2.209 |
| 1½” | 48.054 | 43.50 | 11.5 | 2.209 |
| 2″ | 60.092 | 55.00 | 11.5 | 2.209 |
| 2½” | 72.699 | 65.50 | 8 | 3.175 |
| 3″ | 88.608 | 81.50 | 8 | 3.175 |
| 3½” | 101.316 | 94.30 | 8 | 3.175 |
| 4″ | 113.973 | 107.00 | 8 | 3.175 |
| 5″ | 141.300 | 134.384 | 8 | 3.175 |
| 6″ | 168.275 | 161.191 | 8 | 3.175 |
| 8″ | 219.075 | 211.673 | 8 | 3.175 |
| 10″ | 273.050 | 265.311 | 8 | 3.175 |
| 12″ | 323.850 | 315.793 | 8 | 3.175 |
| Nominal Pipe Size | Centre to End Elbows, Tee, Crosses A | Centre to End 45º Elbows C | Outside Diameter of Band H | Minimum Wall Thickness G | Lengths of Thread Min | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2000# | 3000# | 6000# | 2000# | 3000# | 6000# | 2000# | 3000# | 6000# | 2000# | 3000# | 6000# | B | L2 | |
| 1/8 | 13/16 | 13/16 | 31/32 | 11/16 | 11/16 | 3/4 | 7/8 | 7/8 | 1 | .125 | .125 | .250 | .25 | .2639 |
| 1/4 | 13/16 | 31/32 | 1-1/8 | 11/16 | 3/4 | 7/8 | 7/8 | 1 | 1-5/16 | .125 | .130 | .260 | .32 | .4018 |
| 3/8 | 3/32 | 1-1/8 | 1-5/16 | 3/4 | 7/8 | 1 | 1 | 1-5/16 | 1-1/2 | .125 | .138 | .275 | .36 | .4078 |
| 1/2 | 1-1/8 | 1-5/16 | 1-1/2 | 7/8 | 1 | 1-1/8 | 1-5/16 | 1-1/2 | 1-13/16 | .125 | .161 | .321 | .43 | .5337 |
| 3/4 | 1-5/16 | 1-1/2 | 1-3/4 | 1 | 1-1/8 | 1-5/16 | 1-1/2 | 1-13/16 | 2-3/16 | .123 | .168 | .336 | .50 | .5457 |
| 1 | 1-1/2 | 1-3/4 | 2 | 1-1/8 | 1-5/16 | 1-3/8 | 1-13/16 | 2-3/16 | 2-7/16 | .145 | .196 | .391 | .58 | .6828 |
| 1-1/4 | 1-3/4 | 2 | 2-3/8 | 1-15/16 | 1-3/8 | 1-11/16 | 2-3/16 | 2-7/16 | 2-31/32 | .153 | .208 | .417 | .67 | .7068 |
| 1-1/2 | 2 | 2-3/8 | 2-1/2 | 1-3/8 | 1-11/16 | 1-23/32 | 2-7/16 | 2-31/32 | 3-5/16 | .158 | .218 | .436 | .70 | .7235 |
| 2 | 2-3/8 | 2-1/2 | 3-3/4 | 1-11/16 | 1-23/32 | 2-1/16 | 2-31/32 | 3-5/16 | 4 | .168 | .238 | .476 | .75 | .7565 |
| 2-1/2 | 3 | 3-1/4 | 3-3/4 | 2-1/16 | 2-1/16 | 2-1/2 | 3-5/8 | 4 | 4 | .221 | .301 | .602 | .932 | 1.138 |
| 3 | 3-3/8 | 3-3/4 | 4-3/16 | 2-1/2 | 2-1/2 | 3-1/8 | 4-5/16 | 4-3/4 | 4-3/4 | .236 | .327 | .655 | 1.016 | 1.200 |
| 4 | 3-3/16 | 4-1/2 | 4-1/2 | 3-1/8 | 3-1/8 | 3-1/8 | 5-3/4 | 5 | 6 | .258 | .368 | .735 | 1.094 | 1.300 |
| Nominal Pipe Size | End to End Couplings W | End to End Caps H | Outside Diameter D | End Wall Thickness G Min | Length of Thead Min | ||||
|---|---|---|---|---|---|---|---|---|---|
| 3000# & 6000# | 3000# | 6000# | 3000# | 6000# | 3000# | 6000# | B | L2 | |
| 1/8 | 1-1/4 | 3/4 | 5/8 | 7/8 | 3/16 | .25 | .2639 | ||
| 1/4 | 1-3/8 | 1 | 1-1/16 | 3/4 | 1 | 3/16 | 1/4 | .32 | .4018 |
| 3/8 | 1-1/2 | 1 | 1-1/16 | 7/8 | 1-1/4 | 3/16 | 1/4 | .36 | .4078 |
| 1/2 | 1-7/8 | 1-1/4 | 1-5/16 | 1-1/8 | 1-1/2 | 1/4 | 5/16 | .43 | .5337 |
| 3/4 | 2 | 1-7/16 | 1-1/2 | 1-3/8 | 1-3/4 | 1/4 | 5/16 | .50 | .5457 |
| 1 | 2-3/8 | 1-5/8 | 1-11/16 | 1-3/4 | 2-1/4 | 3/8 | 7/16 | .58 | .6828 |
| 1-1/4 | 2-5/8 | 1-3/4 | 1-13/16 | 2-1/4 | 2-1/2 | 3/8 | 7/16 | .67 | .7068 |
| 1-1/2 | 3-1/8 | 1-3/4 | 1-7/8 | 2-1/2 | 3 | 7/16 | 1/2 | .70 | .7235 |
| 2 | 3-3/8 | 1-7/8 | 2 | 3 | 3-5/8 | 1/2 | 5/8 | .75 | .7565 |
| 2-1/2 | 3-5/8 | 2-3/8 | 2-1/2 | 3-5/8 | 4-1/4 | 5/8 | 3/4 | .932 | 1.138 |
| 3 | 4-1/4 | 2-9/16 | 2-11/16 | 4-1/4 | 5 | 3/4 | 7/8 | 1.016 | 1.200 |
| 4 | 4-3/4 | 2-11/16 | 2-15/16 | 5-1/2 | 6-1/4 | 7/8 | 1-1/8 | 1.094 | 1.300 |
